Trampolines and Installing Hooks

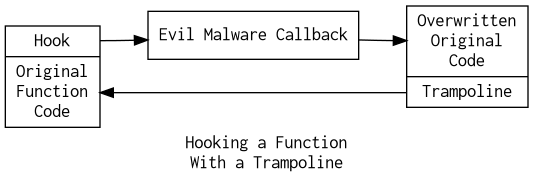

Quick review of trampolines

• The beginning of a benign function is overwritten, to pass control to a “callback”
• The callback does evil things, before jumping to the trampoline
• The trampoline has the overwritten original code to setup the normal function
• The trampoline bounces back up to the rest of the original function

Installing the function hook

LoadLibraryA takes a string (as the name of a library to load) off the stack, and returns the address of the loaded library in eax.

GetProcAddress takes the address of a library off the stack, then a string function name, and returns the function’s address in eax.

memcpy takes three arguments, in order:

• Destination address (top of stack, last pushed)
• Source address (or is this first???)
• Number of bytes to copy

It copies number bytes from source to destination.

Using these three functions, malware can create a “jump here” snippet, and install it over the start of a legitimate function.

In class, the malware snippet used LoadLibraryA and GetProcAddress to get the address of a windows API function that returned valuable information. Netstat uses said function to tell which process is listening on which port. Naturally, the malware wants to hide this.

The malware started with a snippet like this:

mov eax, 0
jmp eax

Then, the malware used memcpy to overwrite the zero in the snippet with the address of its new, malicious function.

Finally, the malware used memcpy to copy the entire snippet over top of the start of the target windows API function. As a result, netstat can no longer get the information it asks for.

Lab 1 is activities 11-2 and 11-3 from Practical Malware Analysis, due February 11th at 11:30pm.

---
